Description:

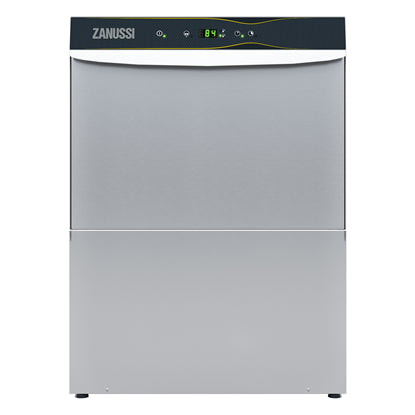

Undercounter Dishwasher with pressure boiler, single skin, multi-rack support, built-in drain pump, detergent and rinse aid dispensers, 1 phase, 540d/h
Specifications:
| Supply Voltage | 230 V/1 ph/50 Hz |
|---|---|
| Dimensions | 600 W x 648 D x 820 H |
| Water Pressure | 2-3 bar |
| Electric - Default Installed Power | 3.65 kW |
| Electric - Boiler heating elements | 2,8 kW |
| Electric - Tank heating elements | 2 kW |
| Electric - Wash pump size | 0.736 kW |
| Sustainability - Water supply temperature* | 65 °C |
| Sustainability - Water consumption per cycle (lt)** | 3 |
| Sustainability - Noise level | <70 dBA |
| Water - Drain line size | 20.5mm |
| Water - Inlet Water supply pressure | 29 - 44 psi (2 - 3 bar) |
| Water - Washing tank capacity (lt) | 33 |
| Water - Boiler Capacity (lt) | 5,8 |
| Key Information - Baskets per hour* | 40 |
| Key Information - Dishes per hour | 540 |
| Key Information - Working cycles time (sec.) | 90/180 |
| Key Information - Wash temperature | 55-65°C |
| Key Information - Rinse temperature | 80-90 °C |
| Key Information - Packaging size(WxDxH) | 740x670x1020 mm |
Documents:
CAD Drawings
Data Sheet
- Undercounter, pressure boiler, single skin, multi-rack support, drain pump,det&rinse aid disp,540d/h
BIM/Revit
