Description:

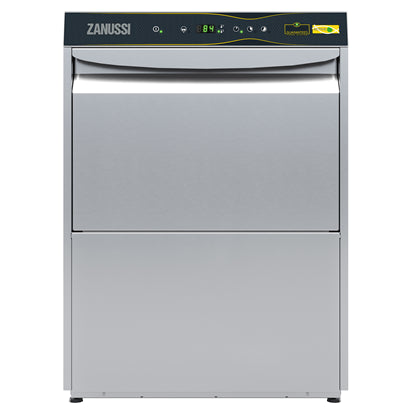

Undercounter Dishwasher with ACTIVE Guaranteed Rinse System, double skin, built-in drain pump, detergent and rinse aid dispensers, 3 phase, 720d/h
Specifications:
| Supply Voltage | 400 V/3N ph/50 Hz |
|---|---|
| Dimensions | 600 W x 615 D x 820 H |
| Water Pressure | 0.5-7 bar |
| Electric - Convertible to | 230V 3~; 230V 1N~ |
| Electric - Default Installed Power | 5.35 kW |
| Electric - Boiler heating elements | 4,5 kW |
| Electric - Tank heating elements | 2 kW |
| Electric - Wash pump size | 0.736 kW |
| Sustainability - Water supply temperature* | 50 °C |
| Sustainability - Water consumption per cycle (lt)** | 2.5 |
| Sustainability - Noise level | 61 dBA |
| Water - Drain line size | 40 mm |
| Water - Inlet Water supply pressure | 7 - 102 psi (0.5 - 7 bar) |
| Water - Washing tank capacity (lt) | 23 |
| Water - Boiler Capacity (lt) | 12 |
| Key Information - Baskets per hour* | 40 |
| Key Information - Dishes per hour | 720 |
| Key Information - Working cycles time (sec.) | 90/120/240 |
| Key Information - Wash temperature | 55-65°C |
| Key Information - Rinse temperature | 84 °C |
| Key Information - Packaging size(WxDxH) | 740x670x1020 mm |
Documents:
CAD Drawings
Data Sheet
BIM/Revit
