Description:

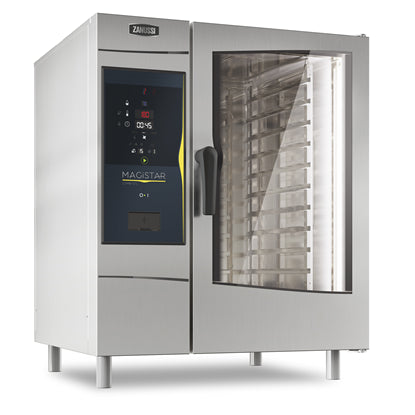

Magistar Combi DS combi boiler oven with digital control, 10x1/1GN, electric, programmable, automatic cleaning, boiler in AISI304 (Australia)
Specifications:
| Supply Voltage | 400-430 V/3N ph/50-60 Hz |
|---|---|
| Dimensions | 867 mmw x 775 mmd x 1058 mmh |
| Default Electrical Power | 19 kW |
| Max Electrical Power | 19.8 kW |
| Clearance | Clearance: 5 cm rear and right hand sides. |
| Weight | 148.5 kg |
| Shipping Weight | 166.5 kg |
| Water Inlet Connection | 3/4" |
| Water Pressure | 1-6 bar |
| Capacity GN | 10 - 1/1 Gastronorm |
| Max Load Capacity | 50 kg |
Documents:
CAD Drawings
Data Sheet
BIM/Revit
