Description:

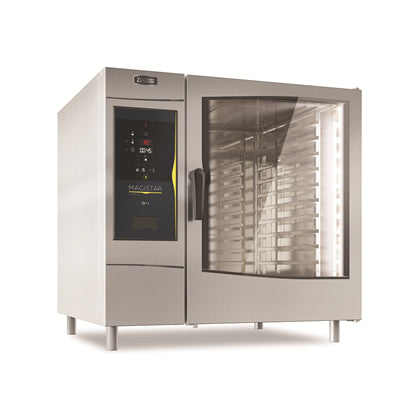

Magistar Combi DS combi boiler oven with digital control, 10x2/1GN, gas, programmable, automatic cleaning, boiler in AISI304 (Australia)
Specifications:
| Supply Voltage | 230-240 V/1 ph/50 Hz |
|---|---|
| Dimensions | 1090 mmw x 971 mmd x 1058 mmh |
| Default Electrical Power | 1.5 kW |
| Max Electrical Power | 1.5 kW |
| Clearance | Clearance: 5 cm rear and right hand sides. |
| Weight | 202.5 kg |
| Shipping Weight | 227.5 kg |
| Water Inlet Connection | 3/4" |
| Water Pressure | 1-6 bar |
| Capacity GN | 10 - 2/1 Gastronorm |
| Max Load Capacity | 100 kg |
Documents:
CAD Drawings
Data Sheet
BIM/Revit
