Description:

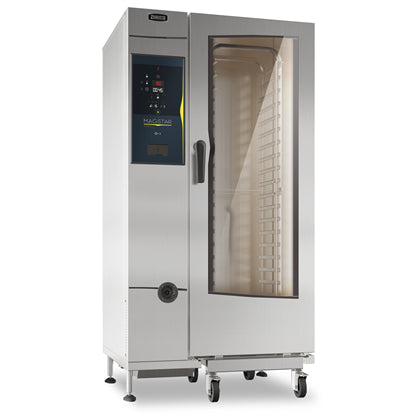

Magistar Combi DS combi boiler oven with digital control, 20x1/1GN, gas, programmable, automatic cleaning, boiler in AISI304 (Australia)
Specifications:
| Supply Voltage | 230-240 V/1 ph/50 Hz |
|---|---|
| Dimensions | 911 mmw x 864 mmd x 1794 mmh |
| Default Electrical Power | 1.8 kW |
| Max Electrical Power | 1.8 kW |
| Clearance | Clearance: 5 cm rear and right hand sides. |
| Weight | 295.5 kg |
| Shipping Weight | 328.5 kg |
| Water Inlet Connection | 3/4" |
| Water Pressure | 1-6 bar |
| Capacity GN | 20 - 1/1 Gastronorm |
| Max Load Capacity | 100 kg |
