Description:

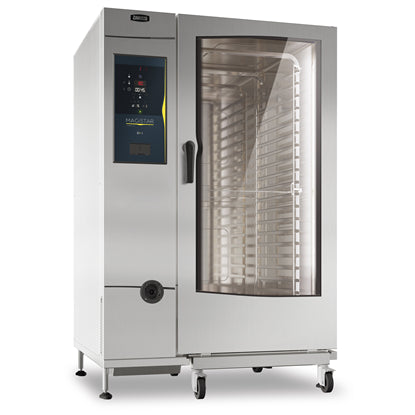

Magistar Combi DS combi boiler oven with digital control, 20x2/1GN, gas, programmable, automatic cleaning, boiler in AISI304 (Australia)
Specifications:
| Supply Voltage | 230-240 V/1 ph/50 Hz |
|---|---|
| Dimensions | 1162 mmw x 1066 mmd x 1794 mmh |
| Default Electrical Power | 2.5 kW |
| Max Electrical Power | 2.5 kW |
| Clearance | Clearance: 5 cm rear and right hand sides. |
| Weight | 398.5 kg |
| Shipping Weight | 436.5 kg |
| Water Inlet Connection | 3/4" |
| Water Pressure | 1-6 bar |
| Capacity GN | 20 - 2/1 Gastronorm |
| Max Load Capacity | 200 kg |
Documents:
CAD Drawings
Data Sheet
BIM/Revit
