Description:

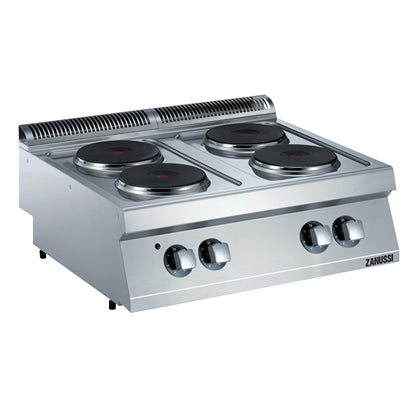

4-hot plate (2,6 kW each) electric boiling top
Specifications:
| Supply Voltage | 380-400 V/3 ph/50/60 Hz |
|---|---|
| Shipping Weight | 38 kg |
| Electric - Total Watts | 10.4 kW |
| Electric - Predisposed for | 380-400V 3~ 50/60Hz 9-10,4kW |
| Key Information - Front Plates Power | 2.6 - 2.6 kW |
| Key Information - Back Plates Power | 2.6 - 2.6 kW |
| Key Information - Front Plates dimensions | Ø 230 Ø 230 |
| Key Information - Back Plates dimensions | Ø 230 Ø 230 |
| Key Information - Net weight | 40 kg |
| Key Information - Shipping volume | 0.37 m³ |
Documents:
CAD Drawings
Data Sheet
BIM/Revit
