Description:

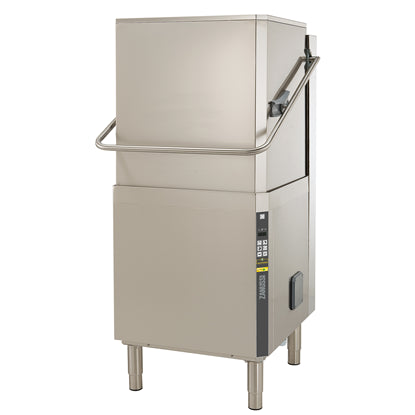

Hood type dishwasher, with single skin hood, built-in detergent dispenser, rinse aid dispenser and drain pump, WRAS approved, 80r/h
Specifications:
| Supply Voltage | 400 V/3N ph/50 Hz |
|---|---|
| Max Electrical Power | 12.9 kW |
| Shipping Weight | 119 kg |
| Electric - Convertible to | 230V 3~; 230V 1N~ 50Hz |
| Electric - Default Installed Power | 9.9 kW |
| Electric - Reducible Installed Power | * 6.9 kW |
| Electric - Boiler Heating Elements Power | * 9 kW |
| Electric - Boiler Reducible To | * 6 kW |
| Electric - Boiler heating elements | 9 kW |
| Electric - Tank heating elements | 3 kW |
| Electric - Wash pump size | 0.8 kW |
| Water - Drain line size | 20.5mm |
| Water - Inlet water supply pressure | 0.5-7 bar |
| Water - Boiler Capacity (lt) | 12 |
| Water - Tank Capacity (lt) | 24 |
| Air Emission - Latent heat | 500 W |
| Air Emission - Sensible heat | 2000 W |
| Sustainability - Water supply temperature* | 10-65 °C |
| Sustainability - Water consumption per cycle (lt)** | 2 |
| Sustainability - Noise level | <68 dBA |
| Key Information - N° of cycles | 3 |
| Key Information - Duration cycle | * 45/84/150 sec. |
| Key Information - Duration cycle - NSF/ANSI 3 compliant | 57/84/150 sec. |
| Key Information - Racks per hour | * 80 |
| Key Information - Racks per hour - NSF/ANSI 3 compliant | 63 |
| Key Information - Dishes per hour | * 1440 |
| Key Information - Dishes per hour - NSF/ANSI 3 compliant | 1134 |
| Key Information - Wash temperature | 55-65 °C |
| Key Information - Wash temperature - NSF/ANSI 3 compliant | 75 °C |
| Key Information - Rinse temperature | 84 °C |
| Key Information - Net weight | 106 kg |
| Key Information - Shipping volume | 1.23 m³ |
| Key Information - Packaging size(WxDxH) | 920x780x1720 mm |
